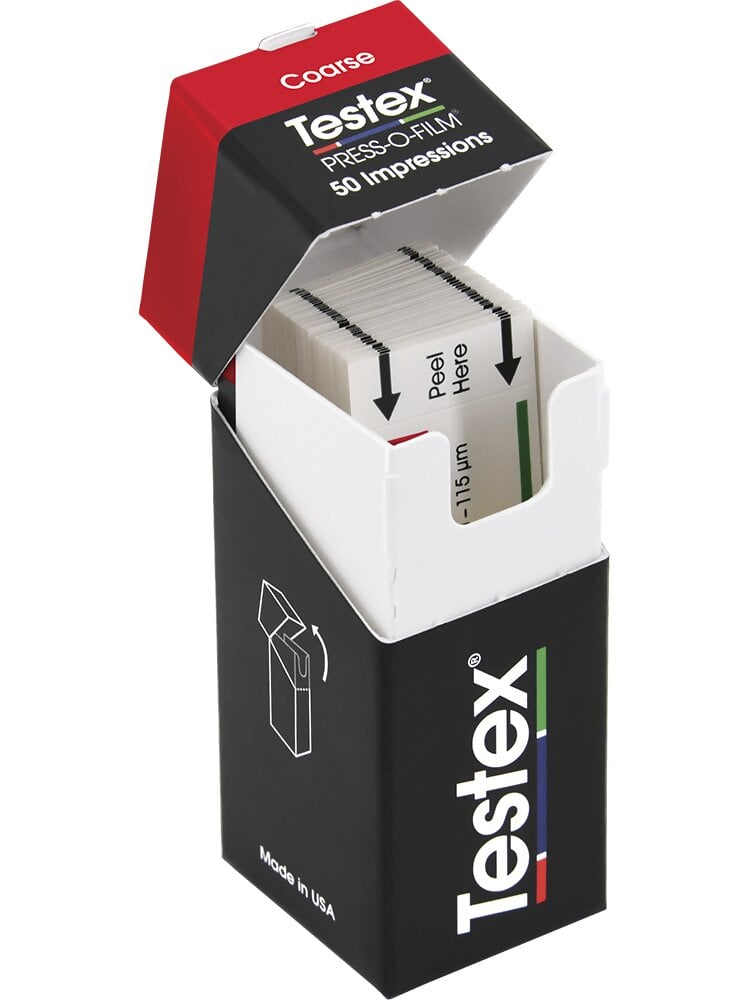

Testex Press-O-Film Replica Tape, Coarse Grade, 0.8 To 2.0 Mils / 20 To 50 Microns, 6 Cartons (6 X 50 Pieces) RTC

Same trusted Coarse and X-Coarse replica foam in new strip format.

Simple technique: place on the surface, press/burnish it into the surface, remove, and measure.

Proven technique with accuracy and repeatability validated by numerous independent studies.

Less than 30 seconds required per test.

Testex Replica Tape measures surface profile by creating a replica of the surface, which can be measured using a micrometer.

• Same trusted Coarse and X-Coarse replica foam in new strip format
• Simple technique: place on the surface, press/burnish it into the surface, remove, and measure
• Proven technique with accuracy and repeatability validated by numerous independent studies
• Measure using an analog precision micrometer or electronic PosiTector RTR Replica Tape Reader
• Less than 30 seconds required per test
• Only surface profile measurement method recognized by ISO, ASTM, and AMPP

Conforms to ASME B46, ASTM D4417, ISO 8503-5, NACE SP287, SSPC-PA 17, SP5, SP6, SP10, SP11-87T, and others.

Testex Press-O-Film Replica Tape consists of a layer of compressible foam affixed to an incompressible polyester substrate of highly uniform thickness. When pressed against a roughened steel surface, the foam collapses and forms an impression of the surface. Placing the compressed Testex tape between the anvils of a micrometer thickness gage and subtracting the thickness of the incompressible substrate gives a measure of the surface profile.
